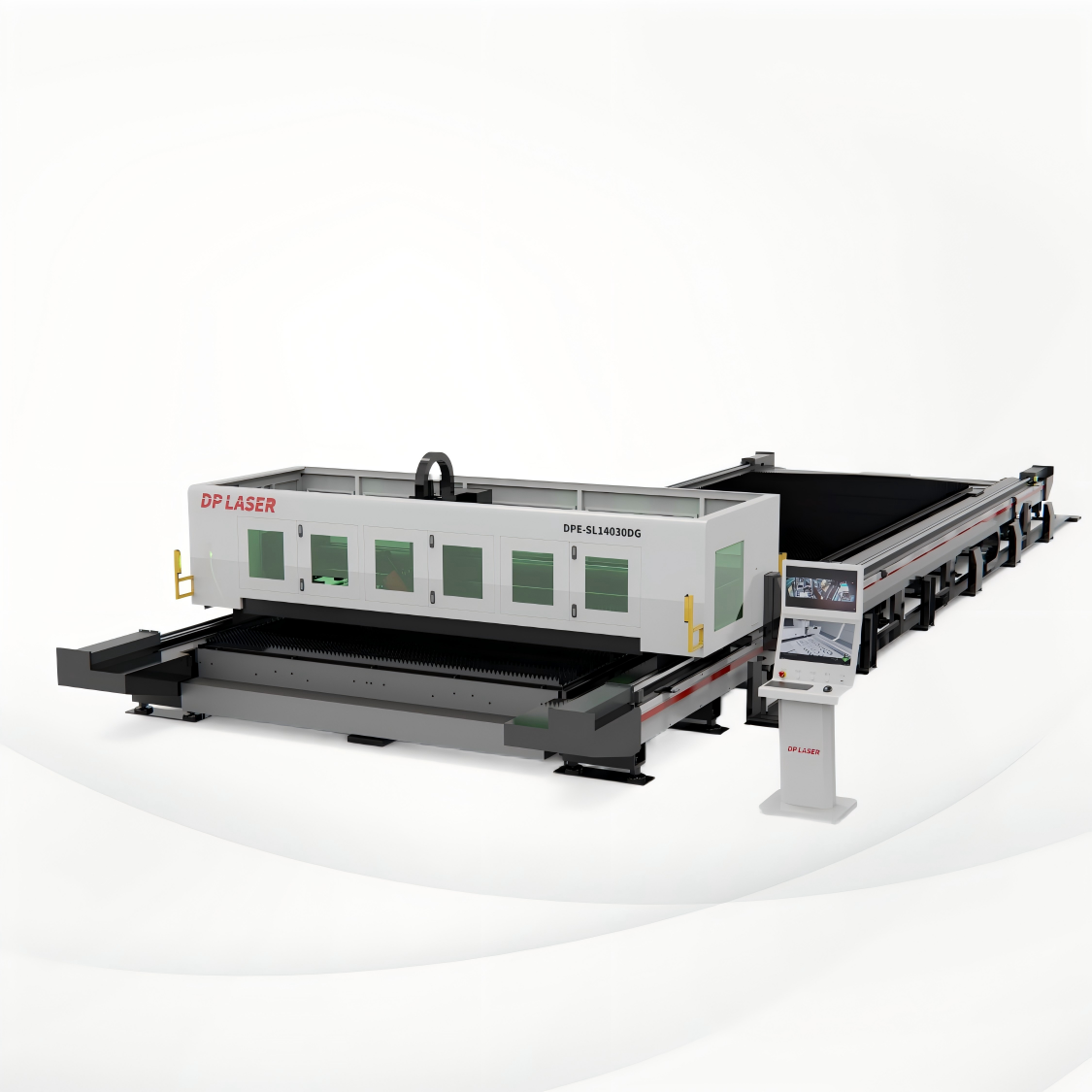

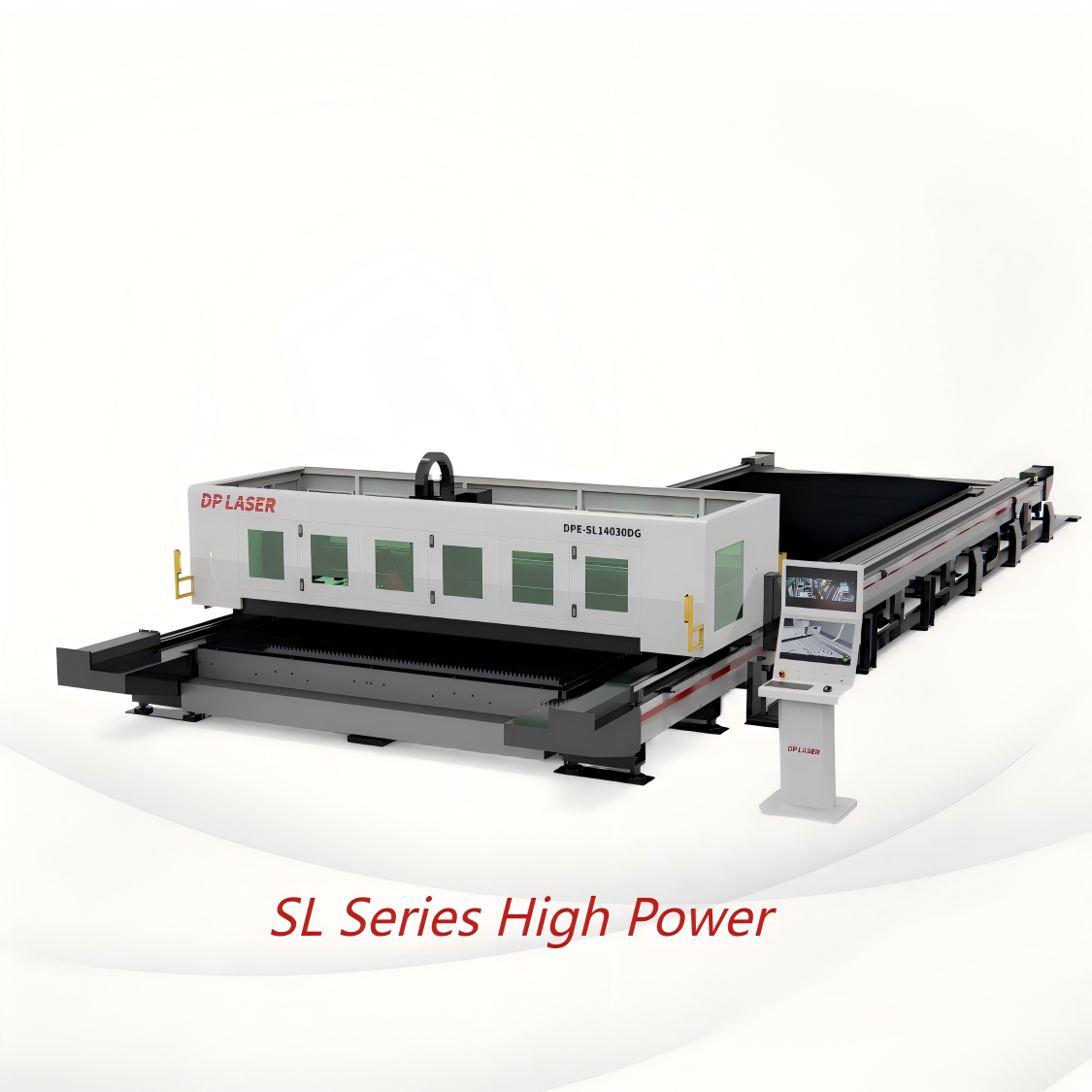

Product Introduction SL-Series (Ground-Rail) Extra-Large Format Fiber Laser Cutting Machine Developed by DP LASER as a mature solution for oversized sheet metal cutting applications, this container-optimized modular system fits standard 40HQ shipping containers, delivering cost-effective industrial performance with powerful cutting capacity, ultra-low operating costs, exceptional stability, and superior material adaptability.
Product Advantage Core Advantages 1.Thermal-Isolated Bed Structure (Physical isolation between worktable and frame, eliminates thermal deformation at high power) 2.Complete Machine 40HQ Modular Shipping (14030×2600mm standardized modules, lowers international shipping costs)
Additional Advantages 3.Safety Protection Kit (Sheet metal enclosure + laser safety glass + safety light curtain) 4.0-45° Bevel Cutting Function (Supports bevel processing on carbon steel/stainless steel thick plates) 5.Scrap Detection System (Intelligent scrap material recognition, improves material utilization) 6.Auto Nozzle Change System (Zero manual intervention, enhances production efficiency) 7.Zoned Dust Extraction System (Targeted fume collection, meets environmental standards)
Technical Parameters
SL SERIES （Customizable）
Model
Cutting range
Laser output power
Maximum acceleration
Minimum slit width
X/Ypositioningaccuracy
Maximum positioning speed
DPE-SL3015
3000x1500mm
6000W.12000w
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL3015D
3000x1500mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL4020
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL4020F
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL4020D
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6020
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6020F
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6020D
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6025
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6025F
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL6025D
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL8025
8000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL8025D
8000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL10025
10000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL10025D
10000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL12025
12000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL12025D
12000x2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL12030
12000×3000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SL13025
13000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DFE-SL14030
14000x3000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
Product Uses Product Applications: This equipment serves comprehensive manufacturing sectors including rail transit, structural steel fabrication, automotive manufacturing, construction machinery, agricultural and forestry equipment, electrical equipment production, elevator manufacturing, home appliances, grain processing machinery, textile machinery, tool and die manufacturing, petroleum machinery, food processing equipment, kitchenware & sanitary ware, decorative advertising, and industrial laser contract processing services.
Product Operate Guide Training and Maintenance Our company provides lifetime complimentary online technical training. Upon completion of installation and commissioning, your technicians may attend on-site technical sessions at our domestic training center until achieving operational proficiency.Core Training Modules: Laser Source Fundamentals Construction, operation, and maintenance Electrical & CNC Systems Electrical principles, CNC operation, programming, and troubleshooting common malfunctions Laser Processing Techniques Machine Tool Operation & Preventive Maintenance Laser Safety Protocols
