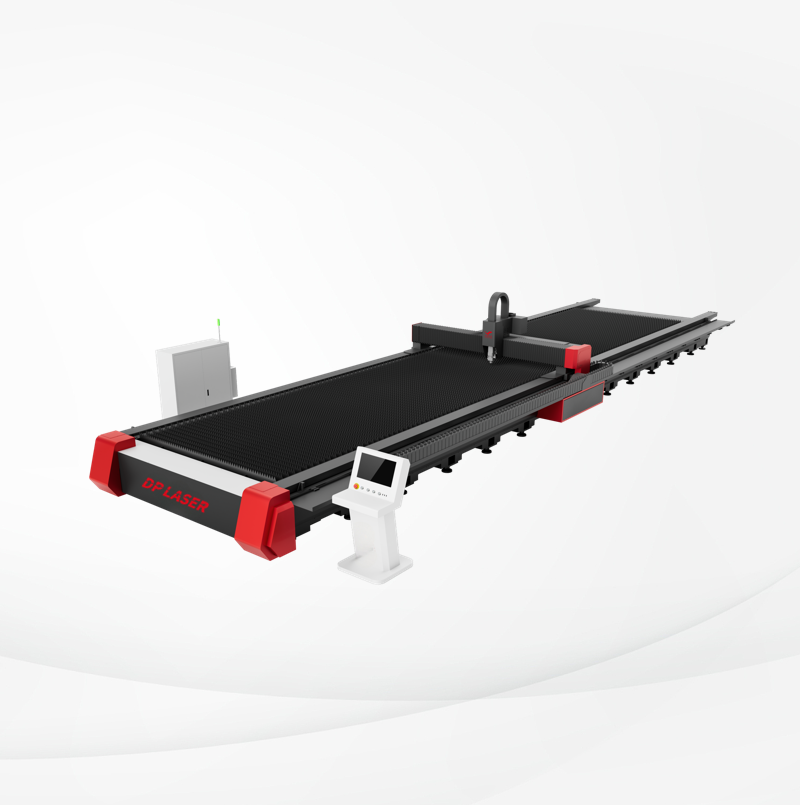

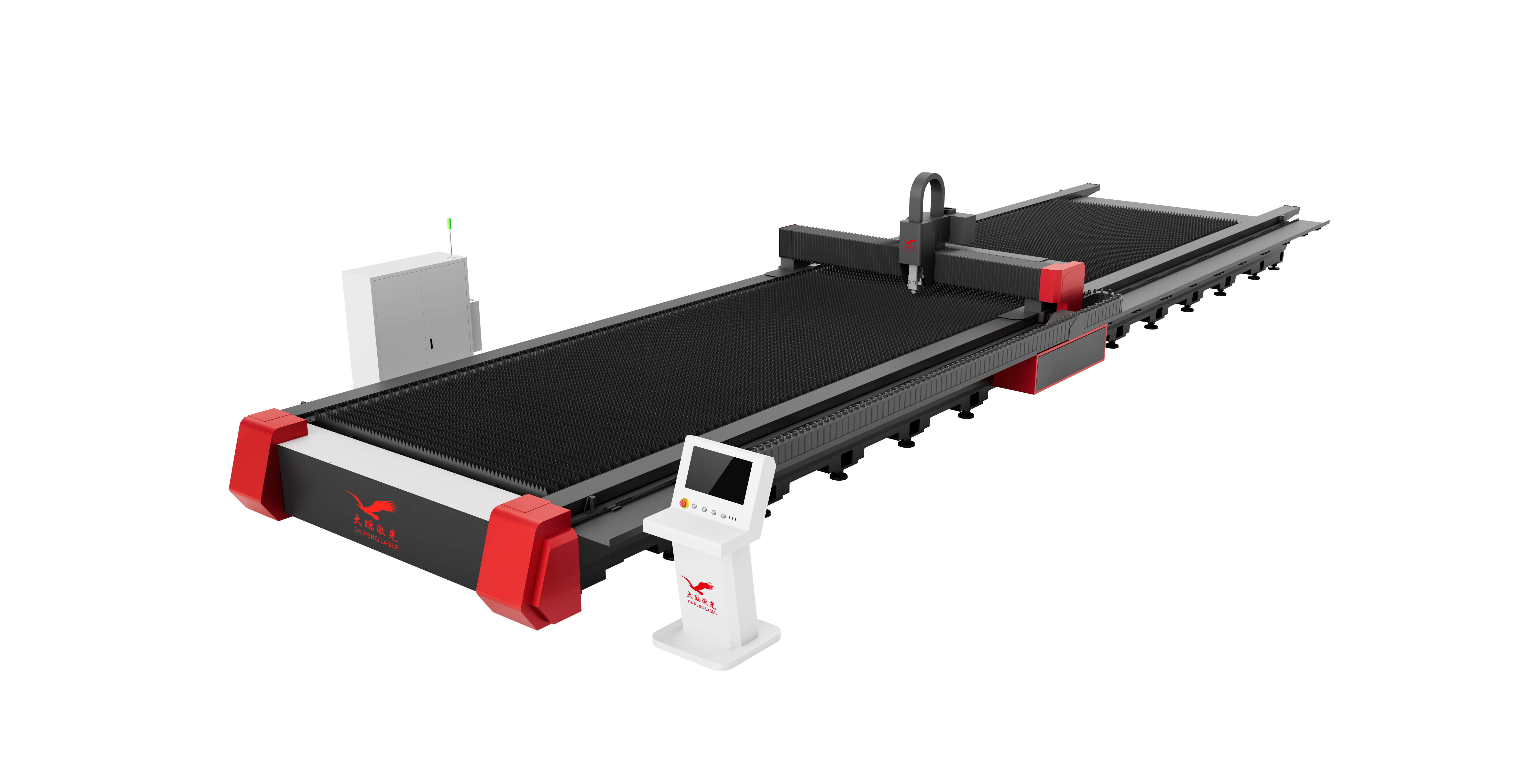

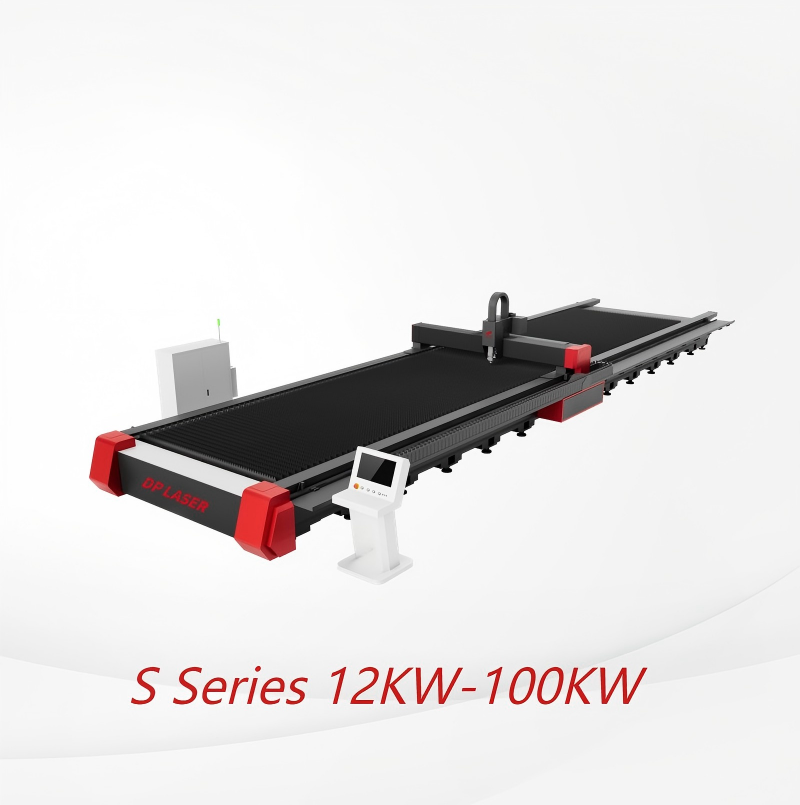

S Series Medium And High Laser Cutting Machine 12kw-100kw
S-Series Fiber Laser Cutting Machine Utilizing a gantry dual-drive structure, the machine bed is fabricated from welded carbon steel with full-body annealing treatment, while the crossbeam employs high-pressure cast aluminum alloy with precision heat treatment. Both components undergo rough machining, vibration aging, and finish machining to achieve exceptional geometric tolerance accuracy. The drive system integrates German-standard high-rigidity precision reducers, European-grade ground gear racks, and high-accuracy linear guides. This robust transmission architecture ensures long-term operational stability through superior rigidity and micron-level precision.
Product Advantage Product Highlights Classic Gantry Structure | Rugged & Durable Inheriting proven designs from industrial leaders, this machine delivers consistent quality validated through years of field operation.
Aerospace-Grade Cast Aluminum Beam | High-Speed Stability Superior lightweight design with enhanced density, rigidity, and adaptability for exceptional dynamic performance.
Next-Gen Bus System | Simplified Operation Fully proprietary technology boosts cutting efficiency by 20%+, handling complex applications with custom service readiness.
Matrix Airflow Design | Efficient Fume Extraction Dual-row partitioned chambers with adaptive control eliminate smoke and dust through hermetic sealing.
Global Tier-1 Components | Peak Performance Imported premium parts deliver micron accuracy, near-zero failure rates, and extended service life.
Technical Parameters
SH SERIES（Customizable）
Model
Cutting range
Laser output power
Maximum acceleration
Minimum slit width
X/Ypositioningaccuracy
Maximumpositioningspeed
DPE-SH3015
3000×1500mm
6000W.12000w
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH3015F
3000×1500mm
6000W.12000w
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH3015D
3000×1500mm
6000W.12000w
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH4020
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH4020F
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH4020D
4000×2000mm
6000W.12000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6020
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6020F
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6025D
6000×2000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6025
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6025F
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH6025D
6000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH8025
8000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH8025D
8000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH10025
10000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH10025D
10000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH12025
12000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH12025D
12000×2500mm
6000W.12000W,20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DPE-SH12030
12000×3000mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DFE-SH13025
13000×2500mm
6000W.12000W.20000W.30000W
1.5G
0.15mm
±0.03mm
110m/min
DFE-SH14030
14000x3000mm
6000W.12000W.20000W.30000w
1.5G
0.15mm
±0.03mm
110m/min
Product Uses Product Applications： Railway transportation, automotive, construction machinery, agricultural and forestry machinery, electrical manufacturing, elevator manufacturing, home appliances, grain machinery, textile machinery, tool processing, petroleum machinery, food machinery, kitchenware and bathroom fixtures, decorative advertising, laser processing services, and other machinery manufacturing and processing industries.
Product Operate Guide Training and Maintenance Our company provides lifetime complimentary online technical training. Upon completion of installation and commissioning, your technicians may attend on-site technical sessions at our domestic training center until achieving operational proficiency. Core Training Modules: Laser Source Fundamentals Construction, operation, and maintenance Electrical & CNC Systems Electrical principles, CNC operation, programming, and troubleshooting common malfunctions Laser Processing Techniques Machine Tool Operation & Preventive Maintenance Laser Safety Protocols
Product Video
FAQ
Q: How can I pay my order? A: We accept T/T, Western Union, Alibaba Online Payment to pay.
Q: Do you have any certificate? A: We have passed ISO9001:2008, ISO14001, OHSAS18001 and obtained CE certificate and BSCI certificate from UL.
Q: Why the model name of your machine same as the machine form other company? A: Since these machines have long history and are very popular in the market, it may be indeed possible that some machine models are similar as others. What we may think is that the machine model does not make big difference. And the criteria for machines may depend on the technical support and quality of the machines.
Q: How about your warranty? A: Our warranty is 12 months. Normally, the general after-sale service may be as below. The technical support is permanent. The paid spares parts could be provided at any time. We have dealers in some countries to offer compensable service.
