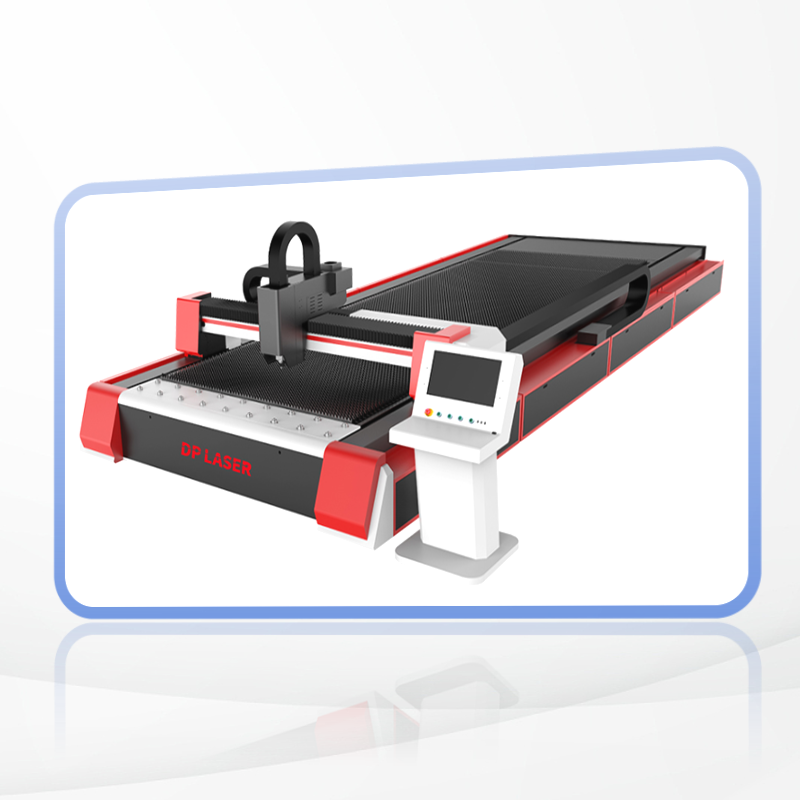

Product Introduction AL-Series represents one of DP LASER's flagship models, engineered for high-precision cutting of medium-to-thick metal plates with an open-frame structure that delivers superior stability, exceptional performance, and outstanding cost-effectiveness.
Product Advantage 1.Dual-Drive Precision Mechanics Servo motors with planetary reducers and ground gear racks ensure superior dynamic performance. 2.Optimized Control Platform High-end CNC system refined through years of laser cutting applications delivers reliability with ergonomic operation. 3.Advanced Gas Control System Imported pneumatic components enable flexible high/low-pressure assist gas selection for quality cutting with cost efficiency. 4.Gantry Structural Integrity Steel-welded bed with honeycomb-reinforced beam and thermal processing guarantees long-term stability without rigidity compromise.
Technical Parameters
AL Series
Model
Cutting range
Laser output power
Maximum acceleration
Minimum slit width
X/Ypositioning accuracy
Maximum positioning speed
Machin size
DPE-A3015
3000*1500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
4831*2225*948mm
DPE-A3015F
3000x1500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
8324*2597*2008mm
DPE-A3015D
3000*1500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
8217*2757*2319mm
DPE-A4020
4000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
6015*3237*1948mm
DPE-A4020F
4000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
10313*3122*1948mm
DPE-A4020D
4000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
10252*3265*2195mm
DPE-A6020
6000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
7966*2993*1948mm
DPE-A6020F
6000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14708*3282*2185mm
DPE-A6020D
6000*2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14667*3255*2369mm
DPE-A6025
6000*2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
7978*3554*1948mm
DPE-A6025F
6000*2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14667*3682*2185mm
DPE-A6025D
6000*2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14614*3825*2195mm
Product Uses Application Industries Suited for sheet metal fabrication, kitchen appliance manufacturing, electrical enclosures/cabinets, lighting and signage, electrical equipment production, and diverse metal product processing.
Material Compatibility Engineered for precision cutting of carbon steel, stainless steel, galvanized steel, electrolytic plates, aluminum alloys, brass, and copper (material thickness capacity varies by laser source specifications)
Product Operate Guide Training and Maintenance Our company provides lifetime complimentary online technical training. Upon completion of installation and commissioning, your technicians may attend on-site technical sessions at our domestic training center until achieving operational proficiency. Core Training Modules: Laser Source Fundamentals Construction, operation, and maintenance Electrical & CNC Systems Electrical principles, CNC operation, programming, and troubleshooting common malfunctions Laser Processing Techniques Machine Tool Operation & Preventive Maintenance Laser Safety Protocols
