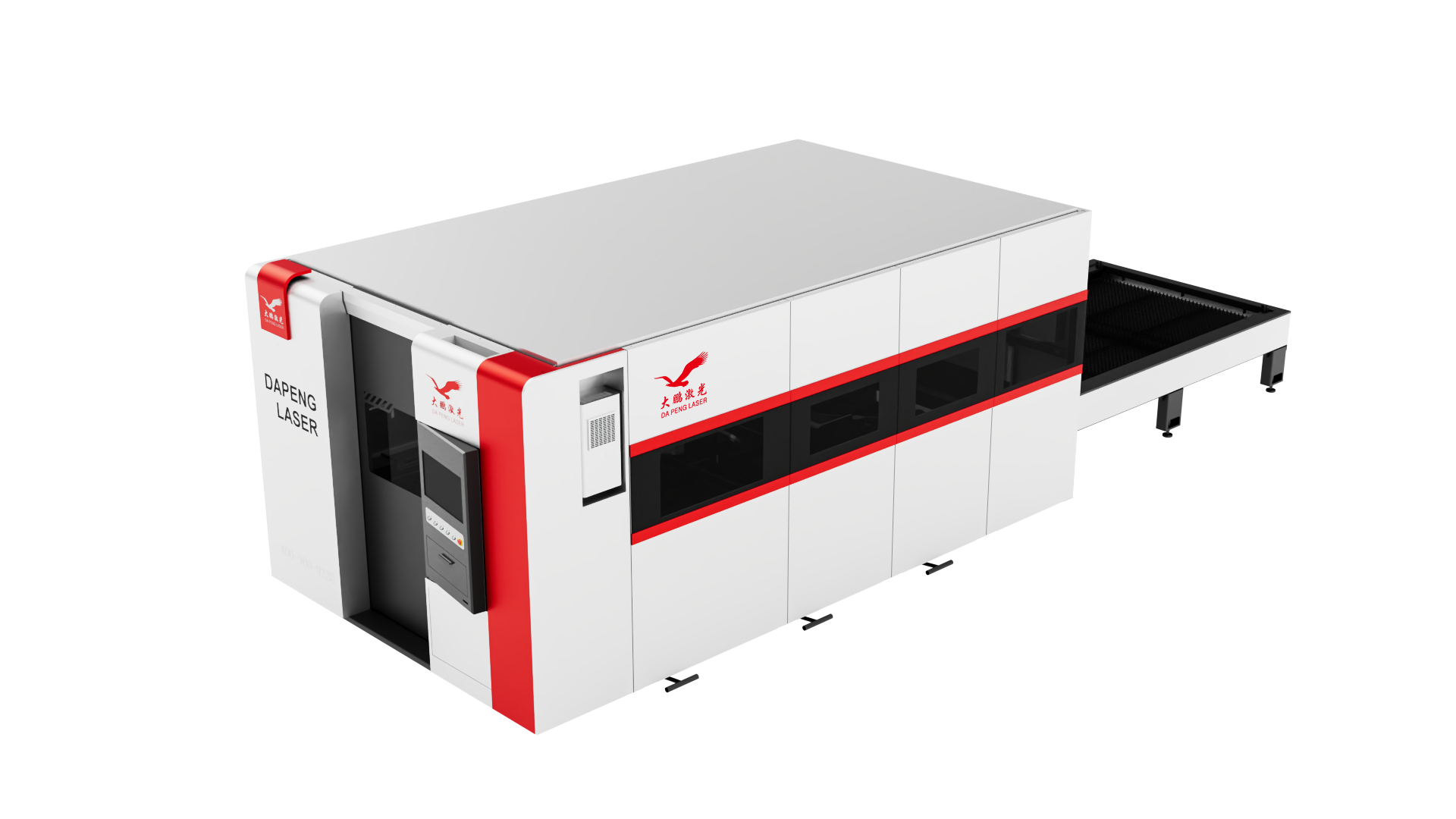

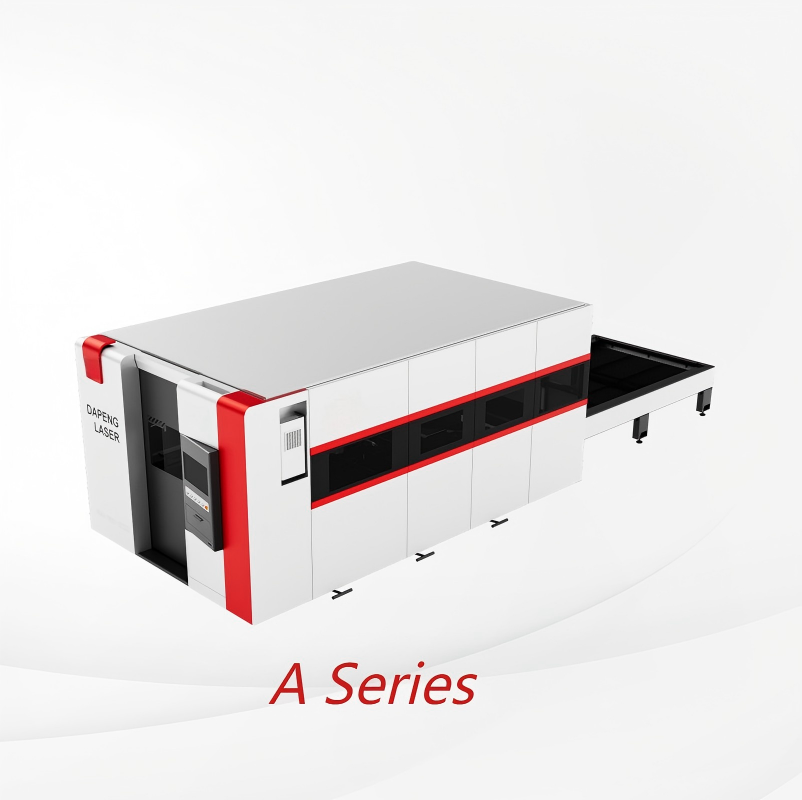

Product Introduction A-Series laser cutting machine targets customers requiring high-efficiency processing, featuring a servo dual-drive rack-and-pinion transmission system, parallelogram exchange tables, and fully enclosed sheet metal guards to deliver exceptional performance with industry-leading cost-effectiveness.
Product Advantage 1.Premium Drivetrain Components Motors and reducers from industry-leading global brands ensure operational reliability. 2.High-Integration Design Consolidated architecture reduces total ownership costs through minimized maintenance. 3.Robust Motion Performance Disc-type reducers deliver optimal acceleration without compromising speed stability. 4.Intuitive Control Platform High-reliability CNC with ergonomic interface enhances operational efficiency. 5.High-Speed Parallel Exchange System Automated shuttle tables boost productivity with readiness for automated material handling. 6.Dual-Drive Gantry Mechanics Steel-welded base + honeycomb reinforced beam with thermal processing ensures dynamic precision.
Technical Parameters
A Series
Model
Cuttingrange
Laseroutputpower
Maximumacceleration
Minimumslitwidth
X/Ypositioningaccuracy
Maximumpositioningspeed
Machinsize
DPE-A3015
3000x1500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
4831*2225*948mm
DPE-A3015F
3000x1500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
8324*2597*2008mm
DPE-A3015D
3000x1500mm
1500W.2000W.3000W.6000w
1.2G
0.15mm
±0.03mm
110m/min
8217*2757*2319mm
DPE-A4020
4000×2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
6015*3237*1948mm
DPE-A4020F
4000x2000mm
1500W.2000W.3000W.6000w
1.2G
0.15mm
±0.03mm
110m/min
10313*3122*1948mm
DPE-A4020D
4000×2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
10252*3265*2195mm
DPE-A6020
6000x2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
7966*2993*1948mm
DPE-A6020F
6000×2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14708*3282*2185mm
DPE-A6020D
6000x2000mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14667*3255*2369mm
DPE-A6025
6000x2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
7978*3554*1948mm
DPE-A6025F
6000×2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14667*3682*2185mm
DPE-A6025D
6000x2500mm
1500W.2000W.3000W.6000W
1.2G
0.15mm
±0.03mm
110m/min
14614*3825*2195mm
Product Uses Application Industries Suited for sheet metal fabrication, kitchen appliance manufacturing, electrical enclosures/cabinets, lighting and signage, electrical equipment production, and diverse metal product processing.
Material Compatibility Engineered for precision cutting of carbon steel, stainless steel, galvanized steel, electrolytic plates, aluminum alloys, brass, and copper (material thickness capacity varies by laser source specifications)
Product Operate Guide Training and Maintenance Our company provides lifetime complimentary online technical training. Upon completion of installation and commissioning, your technicians may attend on-site technical sessions at our domestic training center until achieving operational proficiency. Core Training Modules: Laser Source Fundamentals Construction, operation, and maintenance Electrical & CNC Systems Electrical principles, CNC operation, programming, and troubleshooting common malfunctions Laser Processing Techniques Machine Tool Operation & Preventive Maintenance Laser Safety Protocols
